| Length | up to 16.000 mm |
| Width | up to 2.100 mm |
| Thickness | from 2 mm to 25 mm |
| Edge trimming | up to 25 mm |
| Tensile strength | up to 1.400 N/mm² |
| Yield strength | up to 1.000 N/mm² |
| Length | up to 6.000 mm |
| Thickness | up to 16 mm |
| Depth | up to 1.000 mm |
| Tensile strength | up to 600 N/mm² |
| Dimensions | 10.000 x 10.000 mm |
| Thickness | up to 220 mm |
| Amount of heads | 12 |
| Dimensions | 26.000 x 5.000 mm |
| Thickness | up to 60 mm |
| Amount of heads | 2 |
| Weld bevel | 45 degrees |
| Marking | yes |
| Dimensions | 60.000 x 4.500 |
| Power | 6.000 Watt |
| Weld bevel | 45 degrees |
| SS | 20 mm |
| Aluminum | 8 mm |
| Marking | yes |
| Length | up to 14.200 mm |
| Tensile strength | max. 3.000 metric tons |
| up to Ø 400 mm |
|
up to 10.000 mm |
|
up to 6.000 mm |
|
up to 3.500 x 100 mm |
|
up to UNP400, IPE600, HE1000 |
| Plate staining / Plate oiling | |
| Blasting / Conservation | |
| Zinc-plating | |
| Coating |
| Mig/Mag robot welding | |
| Submerged arc-welding | |
| Las manipulator | |
| Cylinders Ø 5.000 mm, 3.000 x 8 mm |
| in regard to TüV | |
| DoP |
Mentioned values are depending on the combination of quality and dimension
Please contact us for further information

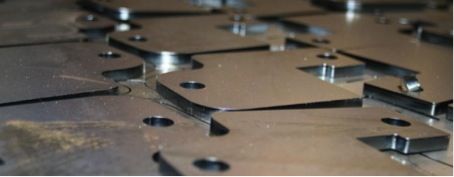

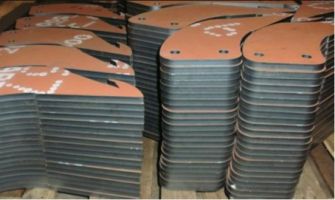

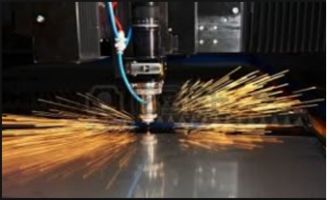

Laser cutting is an excellent choice for cutting steel up to a thickness of 20 mm. It is more accurate than autogenous – and plasma cutting and because of the low heat input there is hardly any distortion. The cutting edges are sharp and usually need no further post processing.
Our partner has an annealing furnace. This oven is not only used for the heat treatment of its own products. Also third-party products are annealed in this oven.
The specifications of the annealing furnace are:
Dimensions(lxbxh): 3.900 x 3.900 x 1.300 mm. Maximum temperature: 1050 degrees Celsius.
The employees of De Plaatijzerindustrie provide the annealing procedure itself. If
desired, they implement them according to various previously existing codes. If necessary,
we bring thermocouples to monitor the temperature of the product closely
during the procedure. Clients receive a annealing explanation and if
desired, an annealing graph.
Most common heat treatments:
- Annealing
- Voltage-free annealing
- Normal annealing
- homogeneous or solvent annealing
